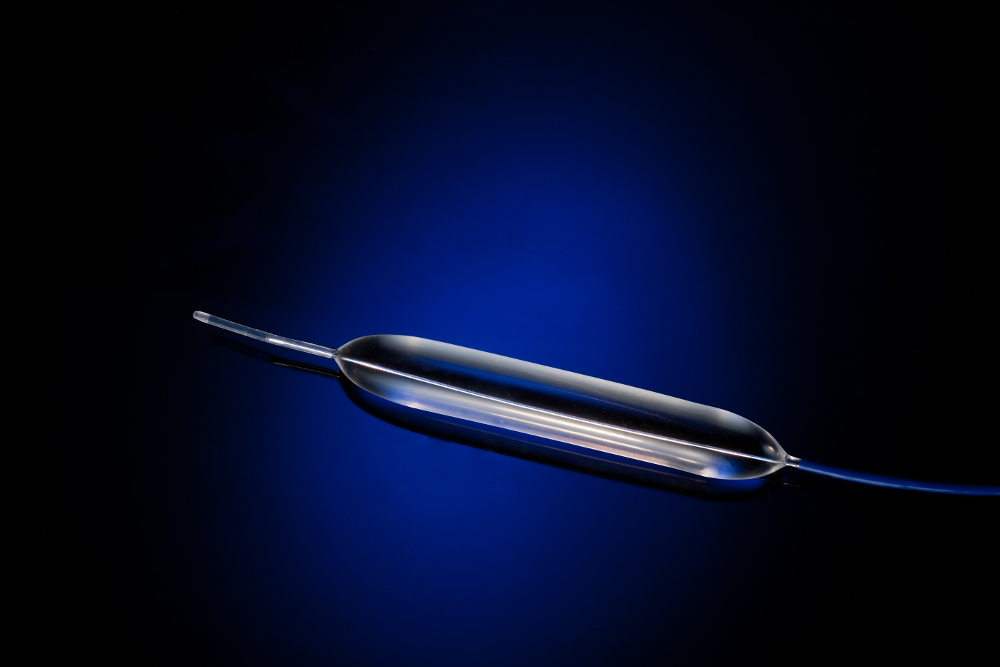

Designed to pass an endoscope channel of 2.3mm or larger without the need for a guidewire, for use in the Esophagus, Pyloris and Colon to open narrowed areas or strictures.
Features:
- Meets all Esophageal, Pyloric and Colonic dilation requirements.
- Designed to use through the scope without a guide wire.
- Uniform dilation performance under recommended gradual inflation pressure.
- Complete range of balloon lengths (3cm, 5.5cm and 8cm) and inflated diameters (8mm to 20mm).
- Compatible with standard inflation/deflation systems as well as Hobbs’ Inflation Monitor.
Note: Multiple diameters are offered, and balloons are packaged sterile for single use.
Contact Us for more information about our Multi-Purpose Stylet Wire Balloon Dilators or use the button below to place an order.
Catalog Number | Inflated Diameter | Balloon Length | Sheath Diameter | Working Length | Working Channel |
---|---|---|---|---|---|
3710 | 14mm (42fr) | 8cm | 2.3mm | 240cm | 2.8mm |
3712 | 16mm (48fr) | 8cm | 2.3mm | 240cm | 2.8mm |
3714 | 18mm (54fr) | 8cm | 2.3mm | 240cm | 2.8mm |
3716 | 20mm (60fr) | 8cm | 2.3mm | 240cm | 2.8mm |
3732 | 8mm (24fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3734 | 10mm (30fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3736 | 12mm (36fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3738 | 14mm (42fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3740 | 16mm (48fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3742 | 18mm (54fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3744 | 20mm (60fr) | 5.5cm | 2.3mm | 240cm | 2.8mm |
3758 | 14mm (42fr) | 3cm | 2.3mm | 240cm | 2.8mm |
3764 | 20mm (60fr) | 3cm | 2.3mm | 240cm | 2.8mm |
